Screen Up Freestanding Joiner Post

CATEGORY: Screen Up Freestanding Array
• Two-way: joiner or end post
• Available in 1.1m and 2m heights
• Quick and easy to set up - professional looking results
• Long-life powder coated aluminium

VERSATILE: JOINER OR END POST

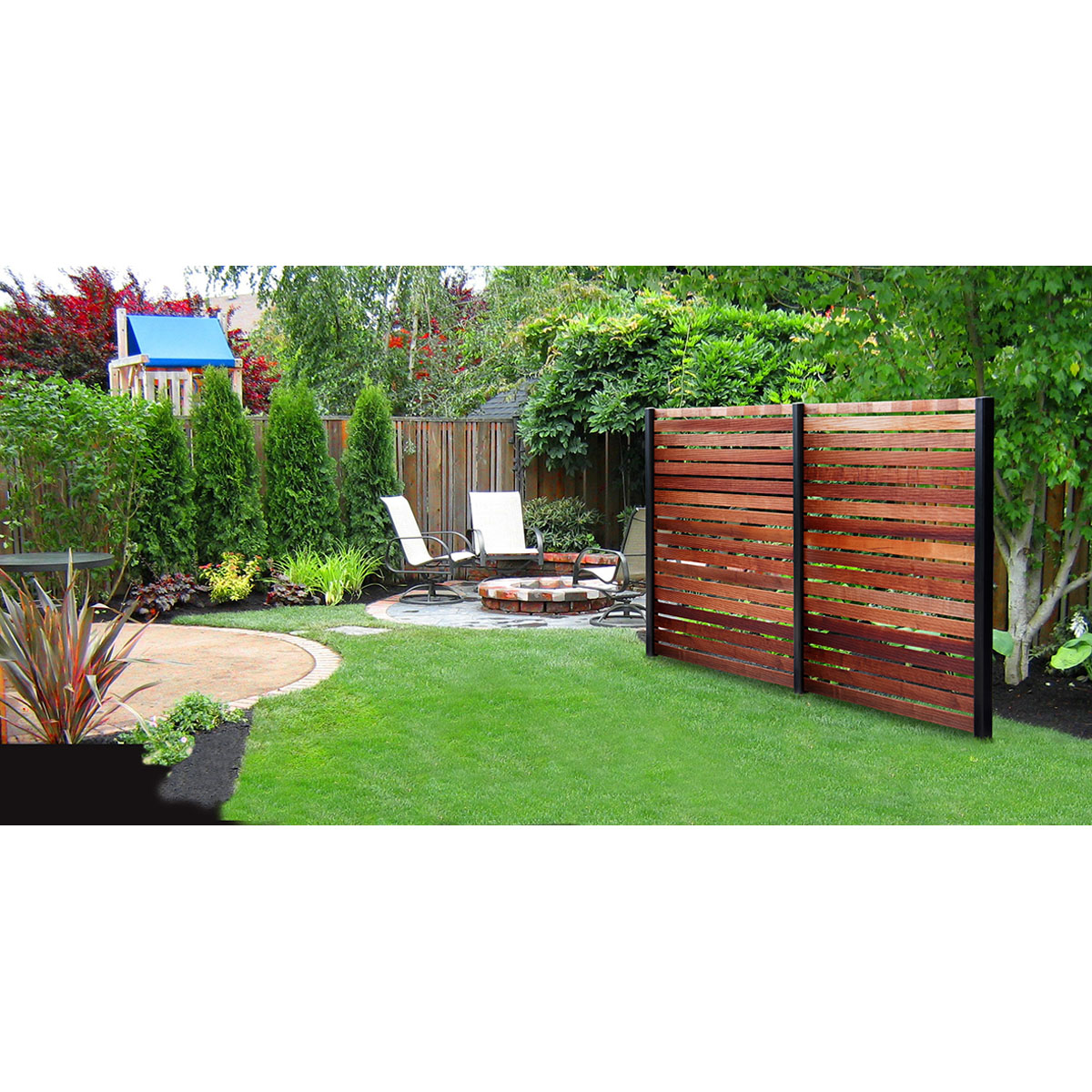

Whites Screen Up Freestanding Joiner Post is a versatile and decorative addition to the Screen Up range. Build a complete privacy screen that spans longer distances without wall or post support. It anchors securely to the ground for a complete freestanding solution.

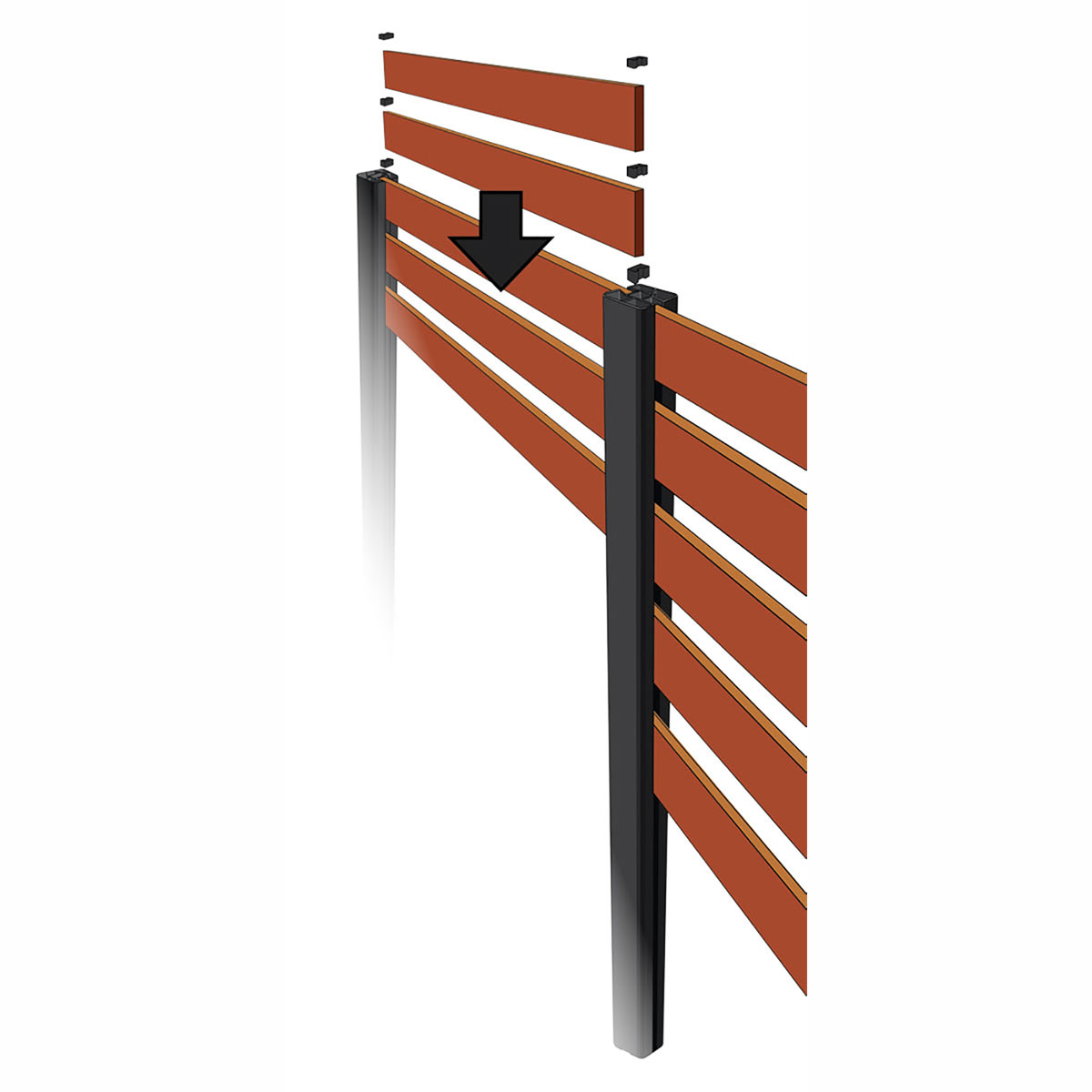

Easy as 1-2-3:

  1. Position and fix the post
  2. Measure and cut timber to size
  3. Insert timber, spacers and end caps

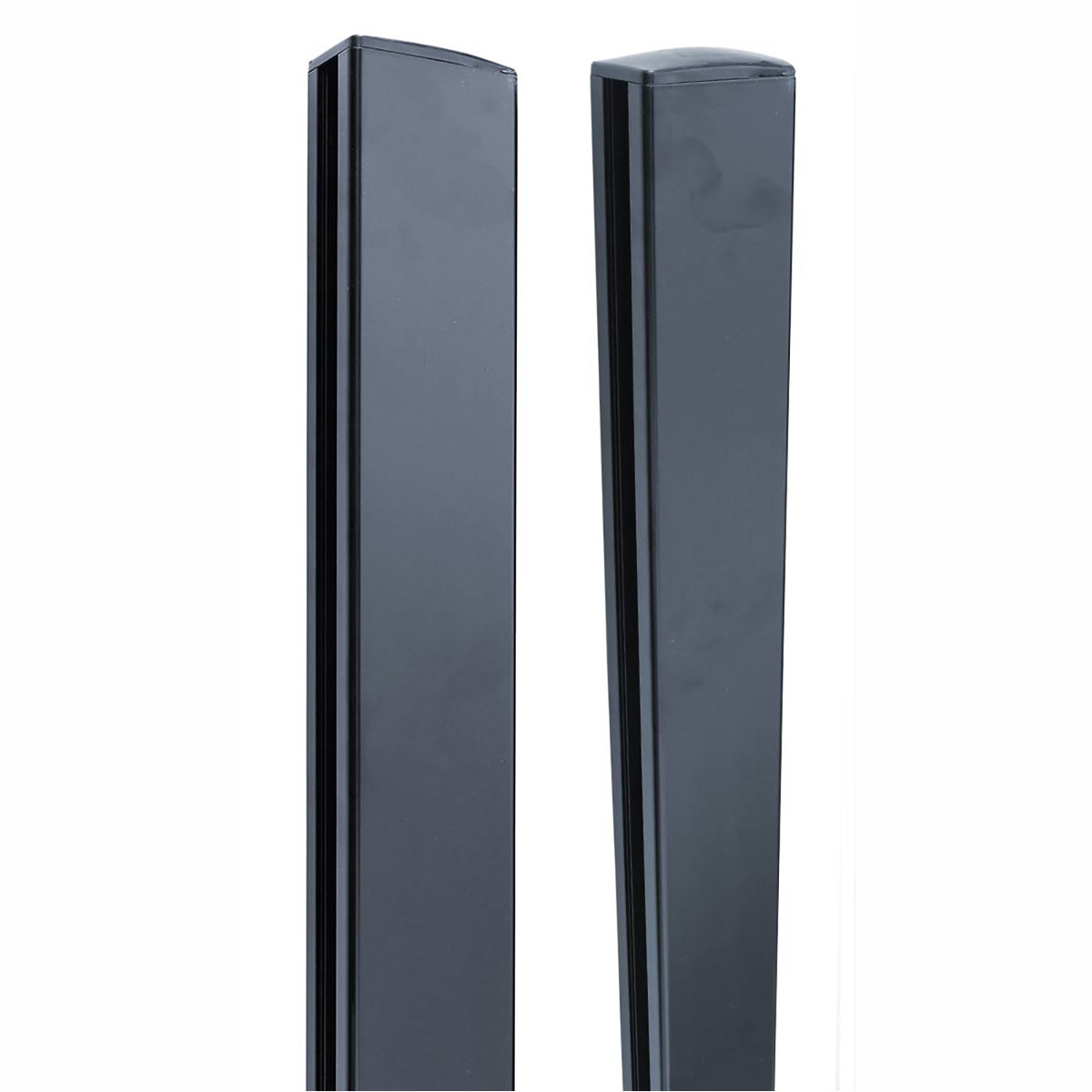

The 2-way post is a rectangular profile and can be used as a joiner for straight runs of screening or as an end post. It is available in 2 heights: 1.1m and 2m.

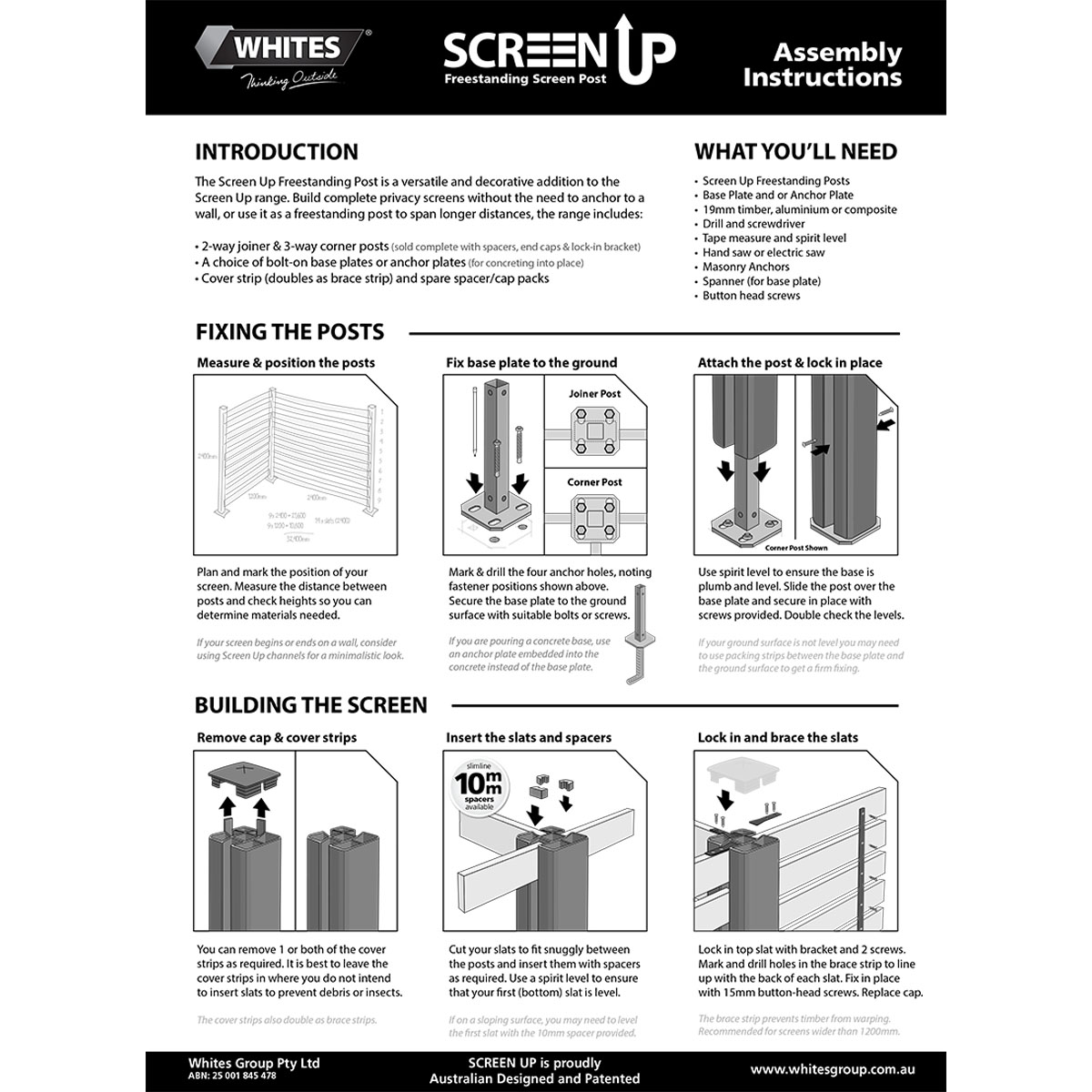

The 1.1m pack comes with step-by-step assembly instructions and contains:

  • 2-way Joiner Post (x1)
  • 19mm Spacers (x19)
  • 10mm Spacers (x4)
  • Brace/Cover Strip (x1)
  • Lock-in Brackets (x2)
  • Post Cap (x1)

As a general guide, the 1.1m post will hold 10 slats @ 90mm width or 12 slats @ 70mm width.



The 2m pack comes with step-by-step assembly instructions and contains:

  • 2-way Joiner Post (x1)
  • 20mm Spacers (x44)
  • 10mm Spacers (x2)
  • Brace/Cover Strip (x1)
  • Lock-in Brackets (x2)
  • Post Cap (x1)

As a general guide, the 2m post will hold 18 slats @ 90mm width or 22 slats @ 70mm width.



Also available in 3-way configuration, click here for more information.

CodeProduct DescriptionTypeMOQBarcode
16850Screen Up Joiner Post - 2mSuits 19mm width slats29312261168506
16852Screen Up Joiner Post - 1.1mSuits 19mm width slats29312261168520



Handy Hints:

• Select the correct mounting base: if you are fixing the post to an existing surface, use the Base Plate (code 16860); if you are pouring your own concrete base, use the Anchor Plate (code 16861).
• For greater privacy, or the slimline look, use Screen Up Slimline Spacers (16870) that provide a 10mm gap between slats (regular gap 20mm).
• Button head screws (15mm) are recommended for fixing bracing and lock-in brackets.
• Use with Screen Up Wall Mount for a wall-mount start or end. Both freestanding and wall-mount systems fit together perfectly to create an integrated privacy screen.

Not all products available in all areas of Australia.
