FG4 Ring Latch

CATEGORY: Gates & Fittings Array

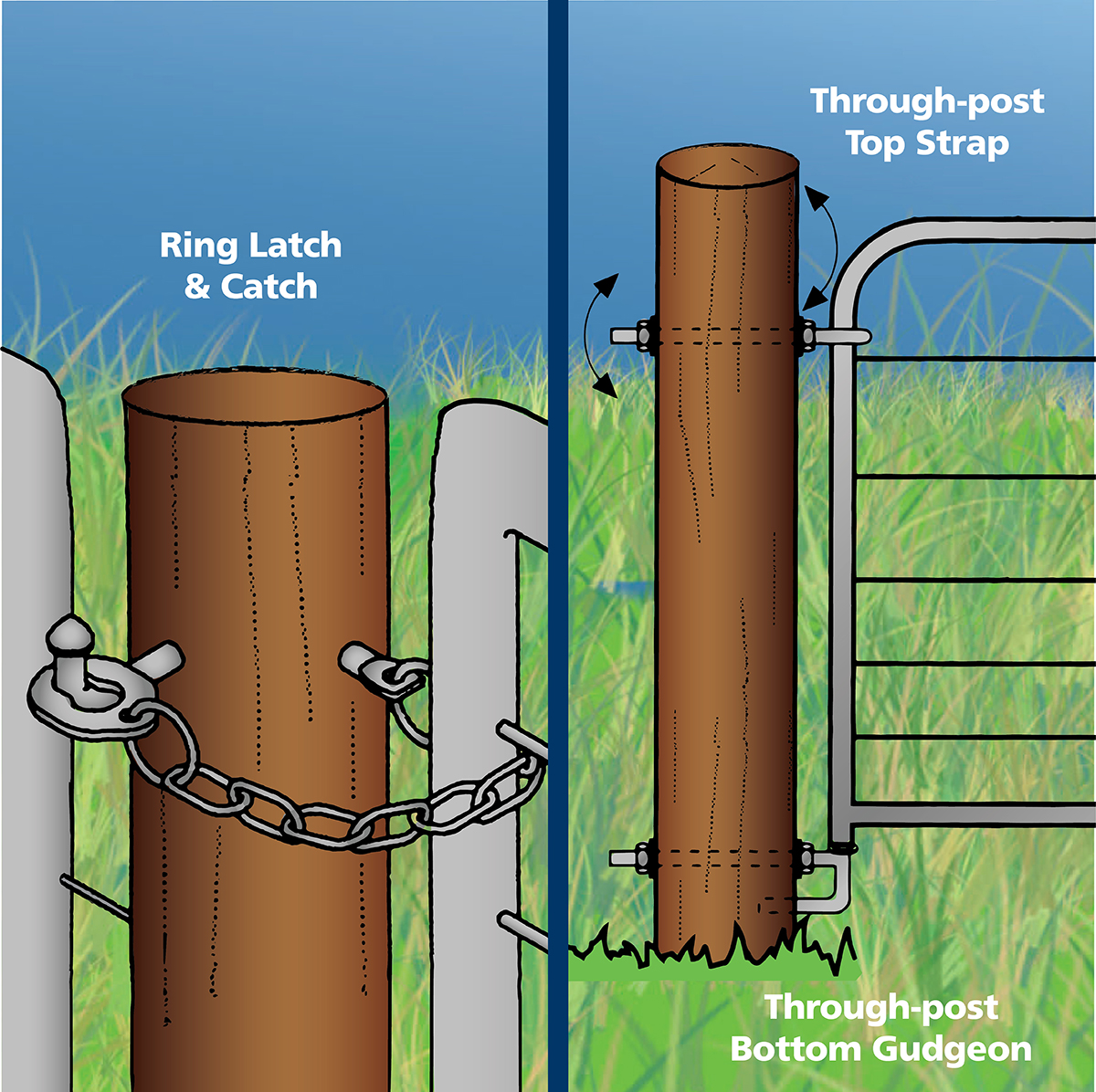

• Gate pack for locking gates
• 12mm ring latch & catch, with chain
• Comes with top strap & bottom gudgeon
• Available at selected Bunnings New South Wales, Queensland & Victoria only. Please check with your local NSW, QLD or VIC store.

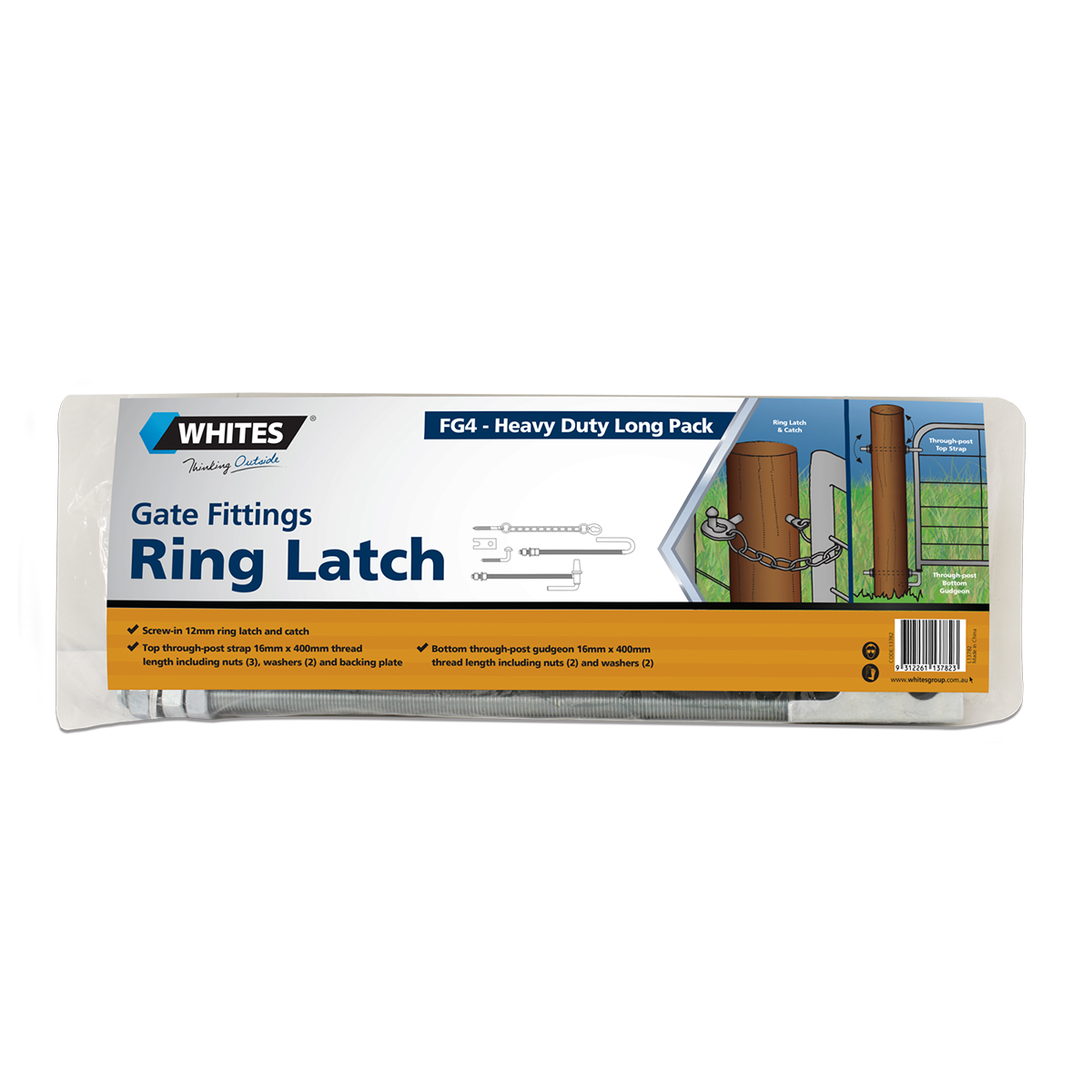

FG4 ring latch - Heavy duty long pack

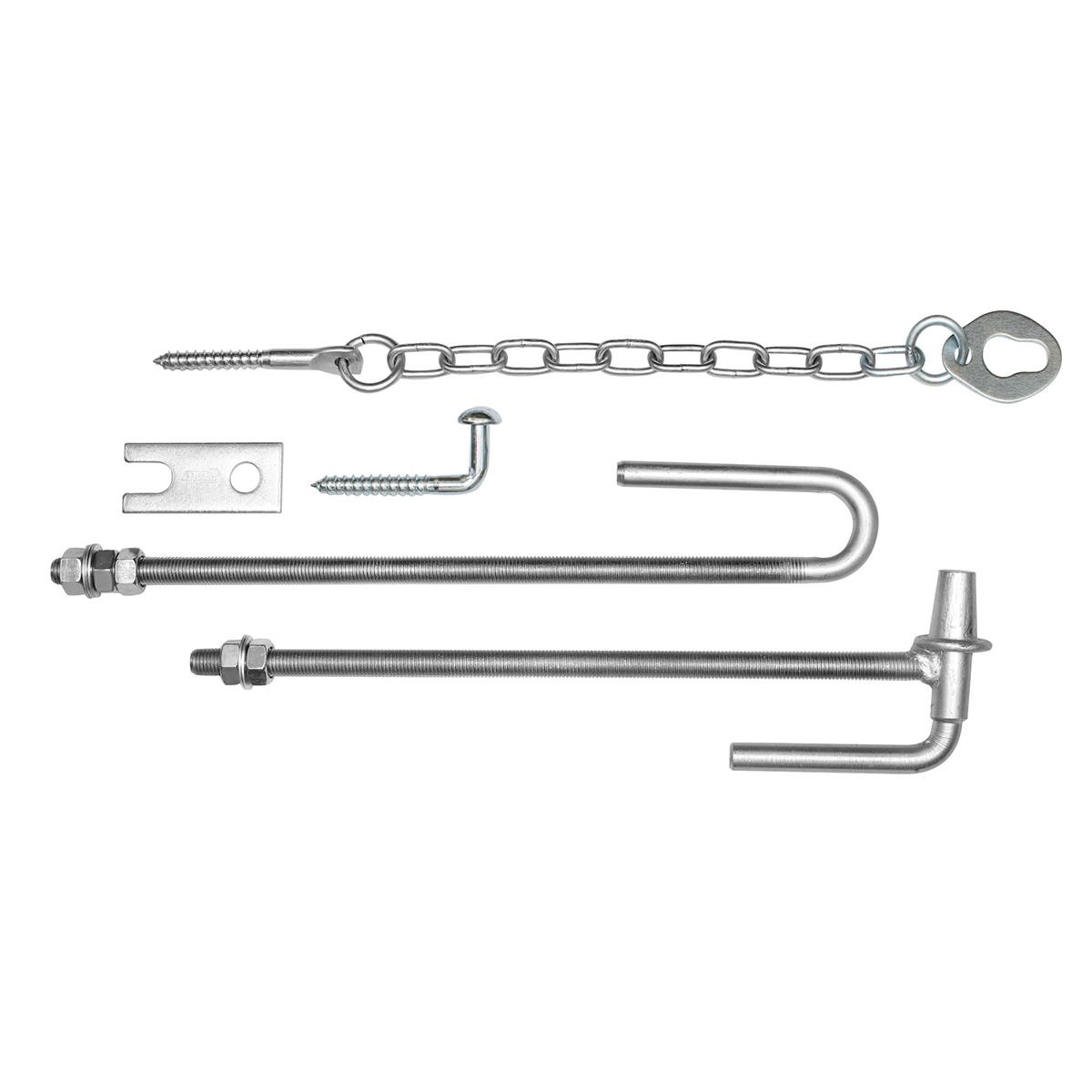

Whites FG4 Ring Latch is a convenient way for locking gates. Featuring a screw-in 12mm ring latch and catch with chain, the pack includes:

  • top through-post strap 16mm x 400mm thread length, 3 x nuts, 2 x washers and backing plate
  • bottom through-post gudgeon 16mm x 400mm thread length, 2 x nuts and 2 x washers

Also available in Drop Latch style.

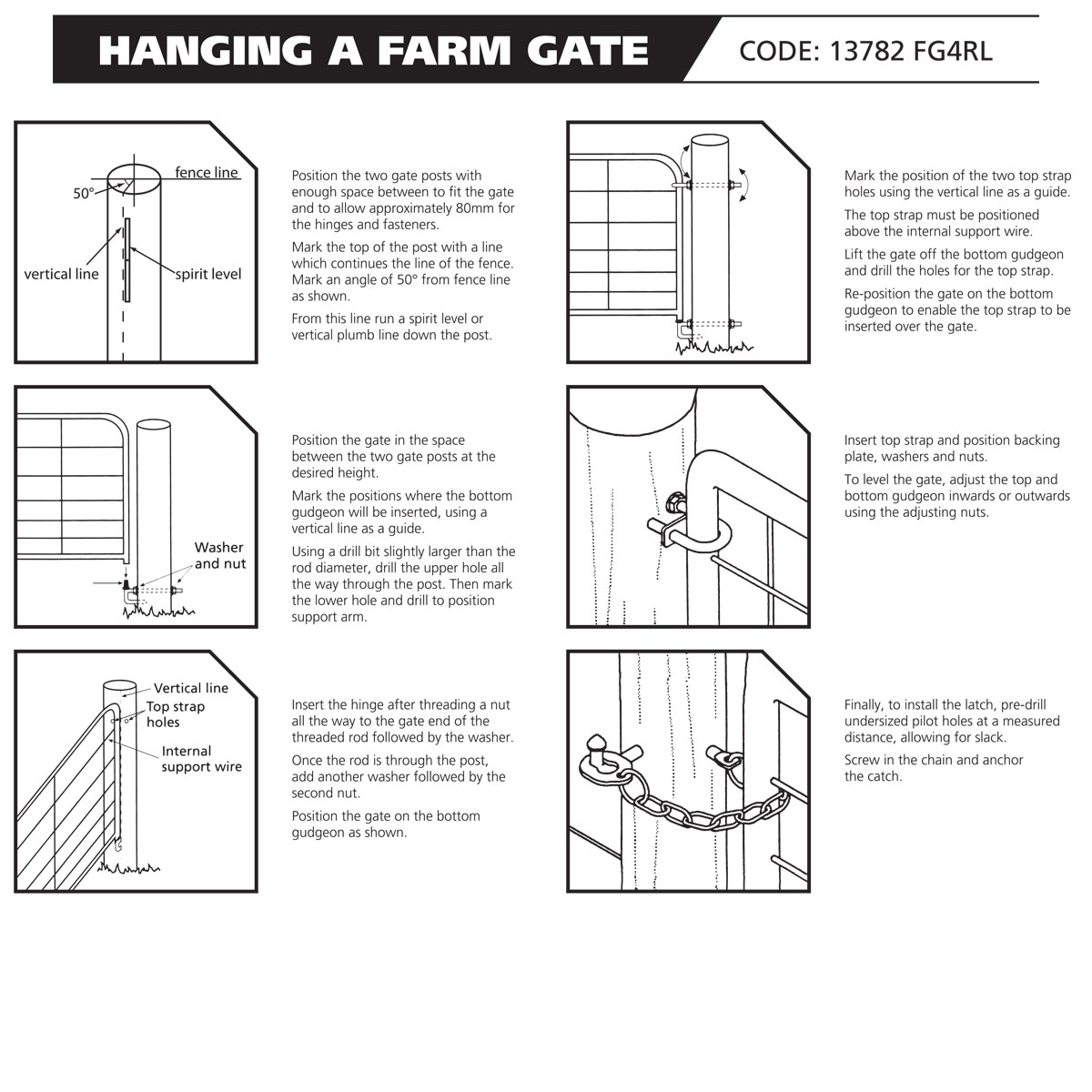

For full installation instruction, click on the image in the photo gallery.

Code Product Description MOQ Barcode
13782 FG4 Ring Latch pack* Bunnings trial only 9312261137823

* Available in New South Wales, Queensland & Victoria only

Not all products available in all areas of Australia.
