Retain-iT® 75mm System

CATEGORY: Aust only Array
• Converts timber sleepers into timber retaining walls up to 800mm high
• 75mm system suits all 75mm timber sleepers
• High tensile, galvanised for long life
• Heavy duty, robust steel construction

HEAVY DUTY RETAINING POST SYSTEM

Easy to use solution for creating solid, aesthetically pleasing retaining walls from timber sleepers

Whites Retain-iT provides a snug fit so that the sleeper is dropped in and immediately secure. No packing or fastening is required.

Available in three configurations:

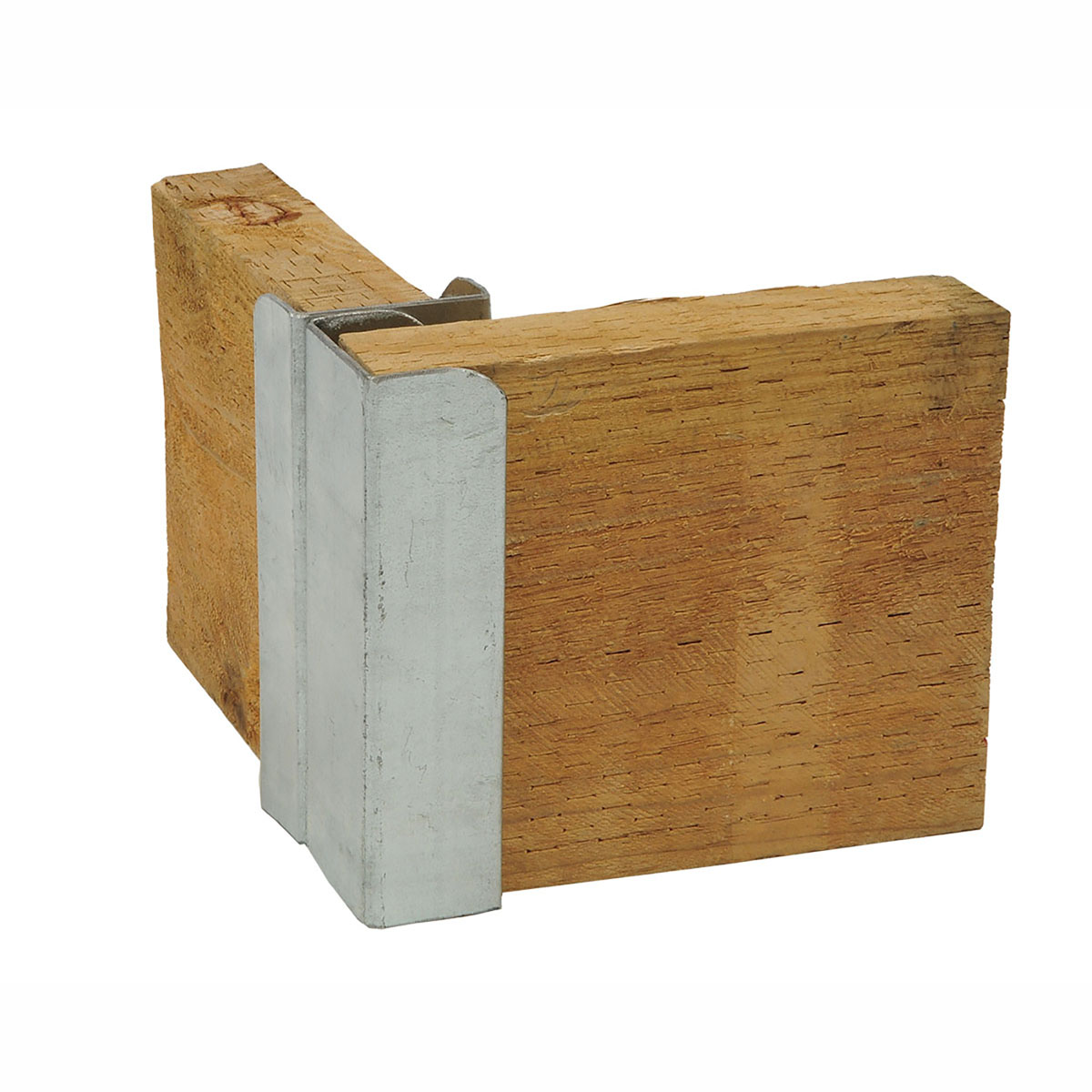

    • Corner Post - for perfect 90° corners

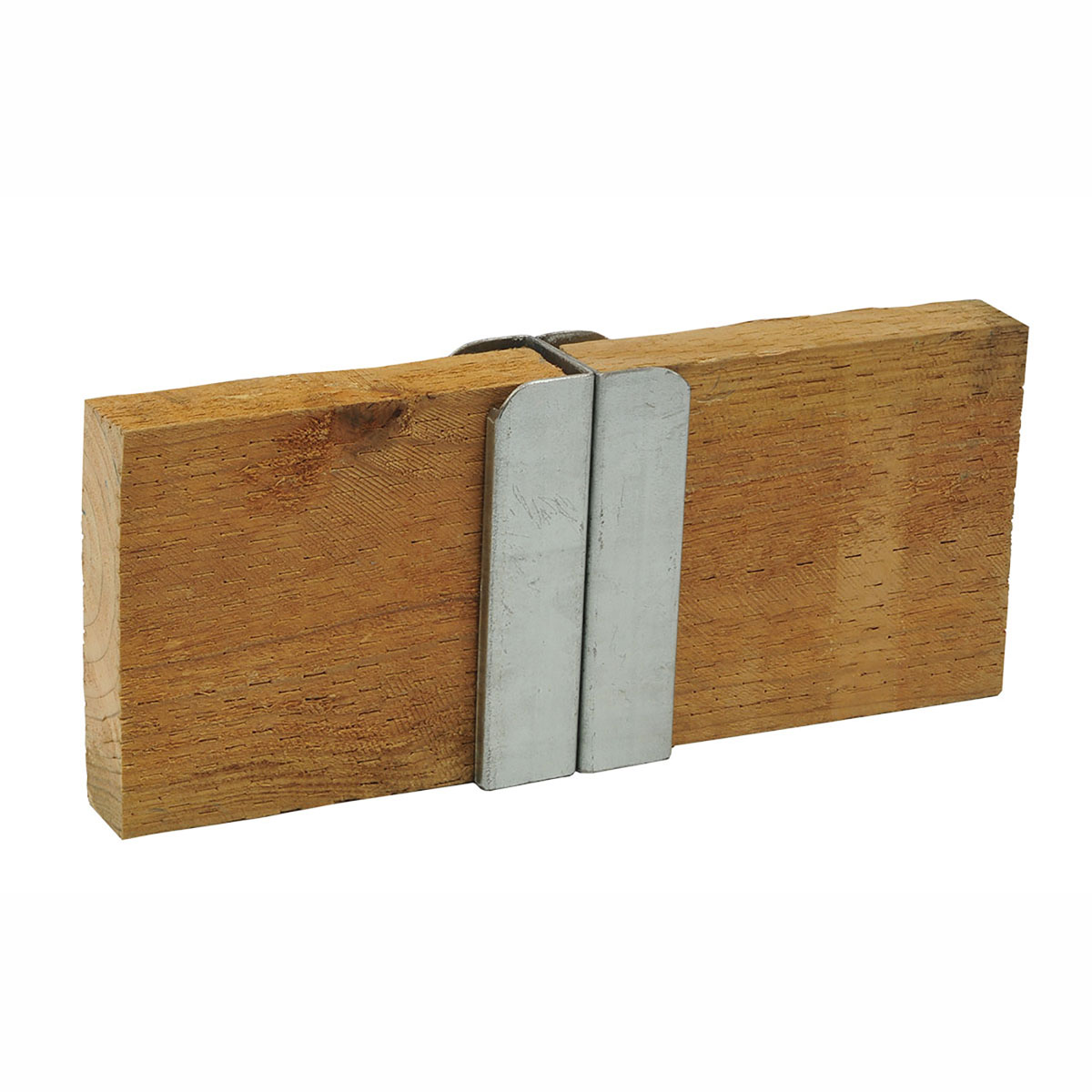

    • Joiner Post - for joining sleepers in a straight line

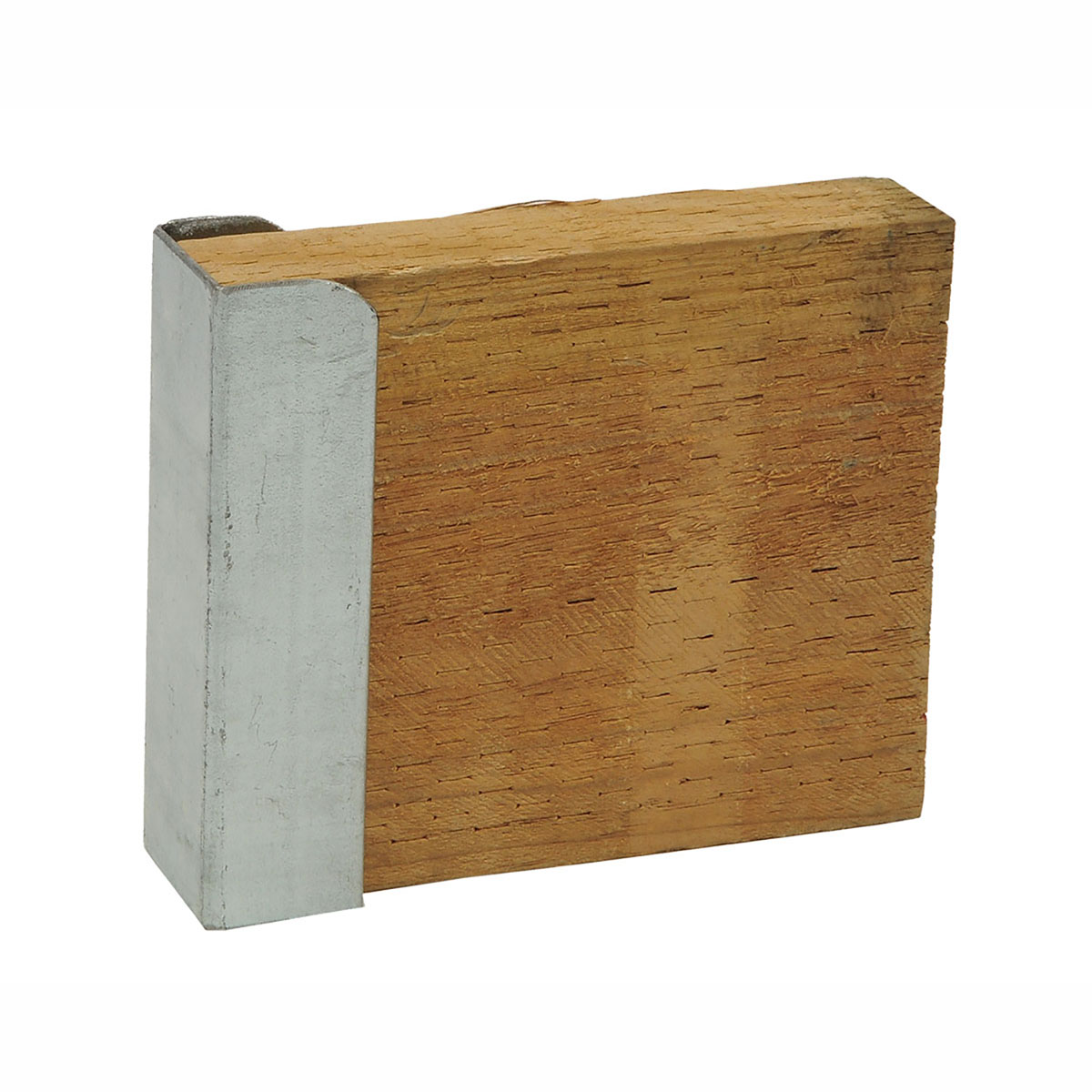

    • End Post - for a neat finish to your wall

As functional as it is beautiful, the system has the strength and long-life of high tensile, galvanised steel; and, is flexible enough to cater to single, double, triple and quadruple sleeper heights.

Retain-iT 75mm systems suit timber sleepers that are 75mm wide. For 50mm wide sleepers, use Retain-iT 50mm system.

For more information, video and instructions on how to install Retain-iT, click here.

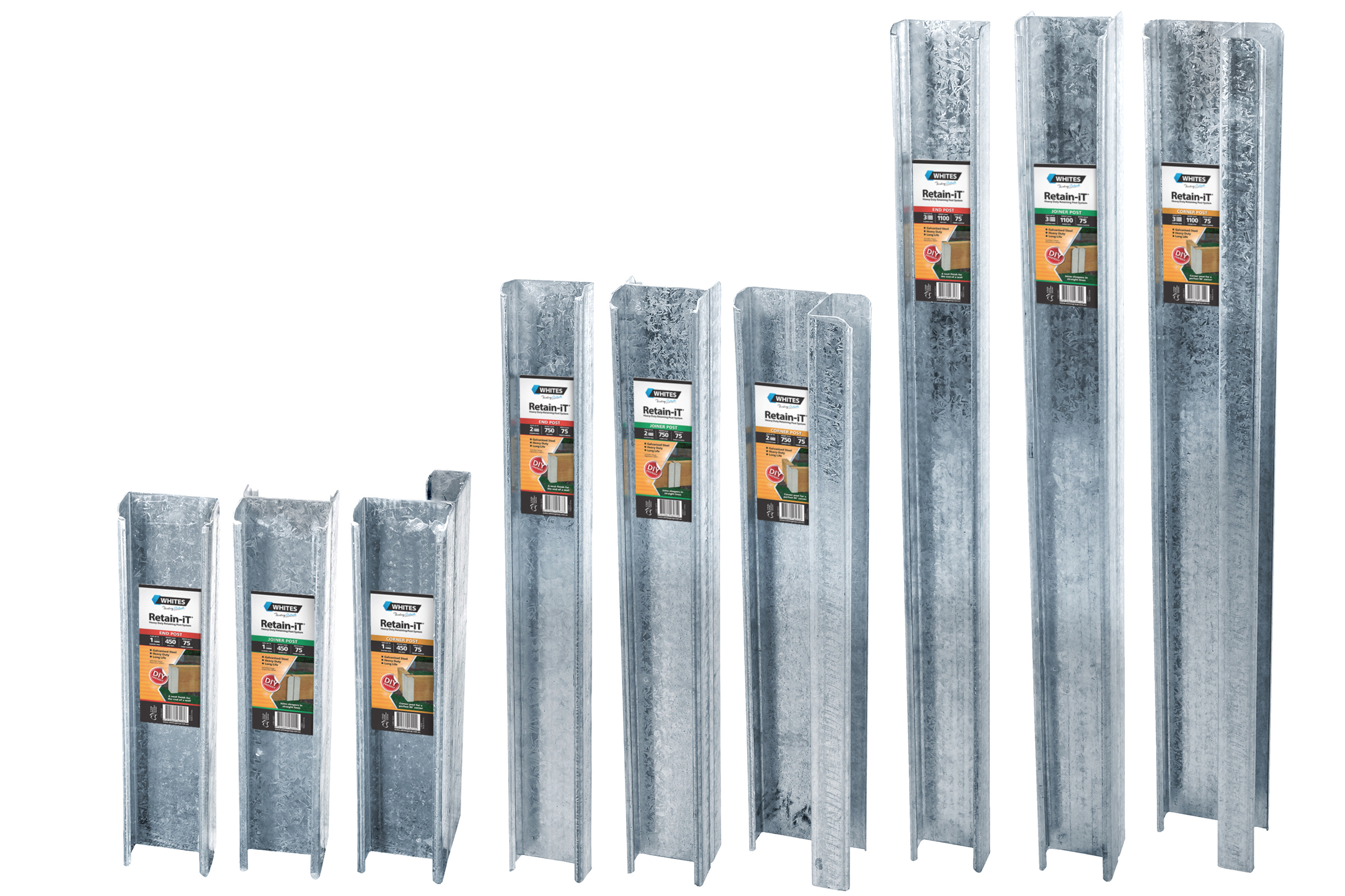

CodeProduct NameTo SuitMOQBarcode
16243Retain-iT 75mm System - 450mm End Post1 Sleeper19312261162436
16273Retain-iT 75mm System - 750mm End Post2 Sleepers19312261162733
16313Retain-iT 75mm System - 1100mm End Post3 Sleepers19312261163136
16353Retain-iT 75mm System - 1500mm End Post4 Sleepers19312261163532
16241Retain-iT 75mm System - 450mm Joiner Post1 Sleeper19312261162412
16271Retain-iT 75mm System - 750mm Joiner Post2 Sleepers19312261162719
16311Retain-iT 75mm System - 1100mm Joiner Post3 Sleepers19312261163112
16351Retain-iT 75mm System - 1500mm Joiner Post4 Sleepers19312261163518
16242Retain-iT 75mm System - 450mm Corner Post1 Sleeper19312261162429
16272Retain-iT 75mm System - 750mm Corner Post2 Sleepers19312261162726
16312Retain-iT 75mm System - 1100mm Corner Post3 Sleepers19312261163129
16352Retain-iT 75mm System - 1500mm Corner Post4 Sleepers19312261163525



Handy Hints:

    • Check with your local council for regulations regarding retaining walls.
    • When installing Retain-iT, concrete one post at a time adding sleepers as you go to ensure a straight wall
    • For a different look, add a layer of timber capping to the top of the wall - it makes for great seating too
    • Designed with 15° tolerance,so you can create 'curved' walls at special angles
