Aust only: FG9 Drop Latch
Search
PDF
13785-FG9-Drop-Latch
13785-FG9-Drop-Latch-back

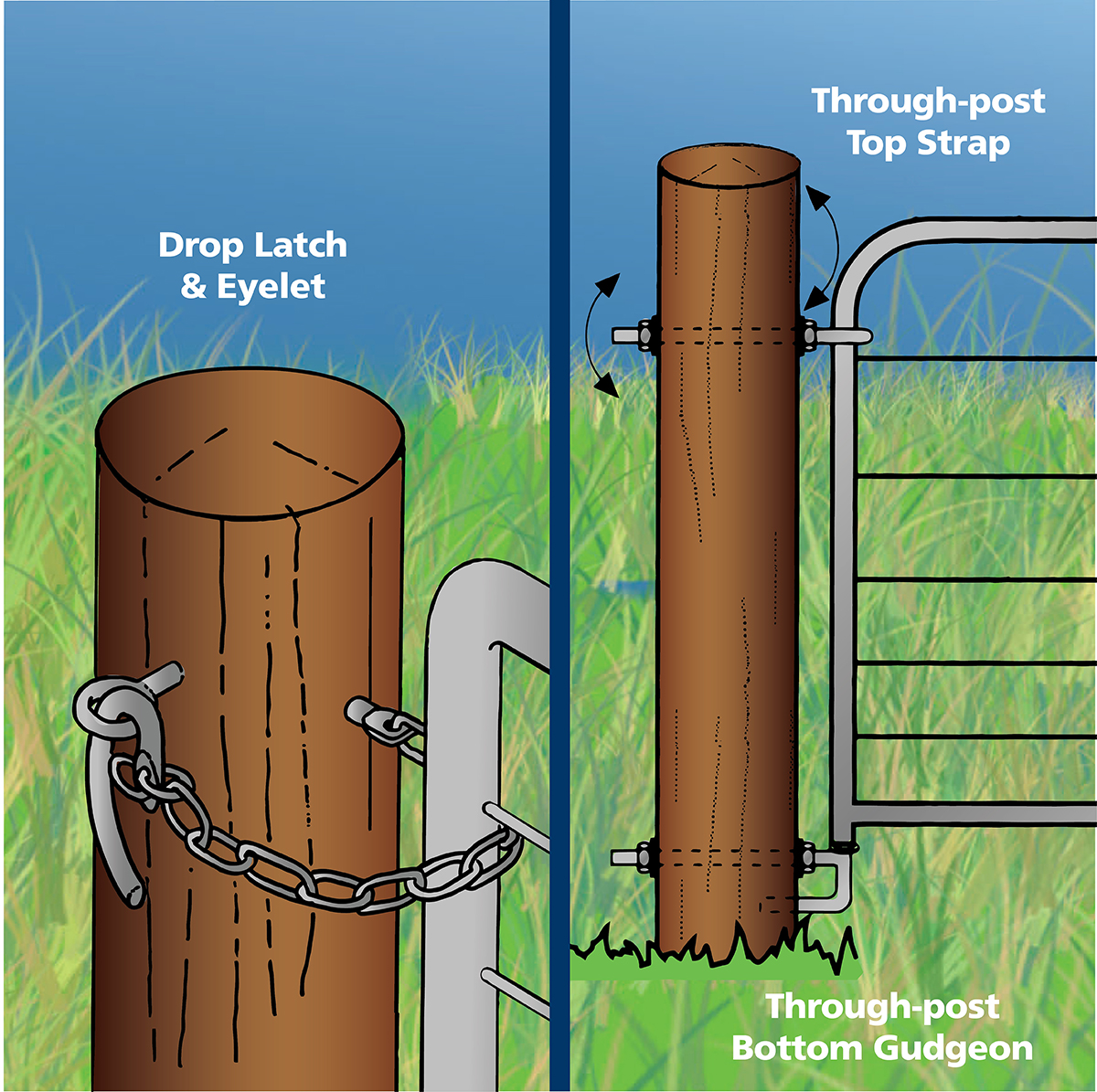

13785 - FG9 Drop Latch illustration 1200px
13785 - FG9 Drop Latch installation instruction

FG9 Drop Latch

CATEGORY: Aust only Array
• Gate pack for locking gates
• 12mm drop latch & eyelet, with chain
• Comes with top strap & bottom gudgeon
• Available at selected Bunnings South Australia & Victoria only. Please check with your local SA or VIC store.

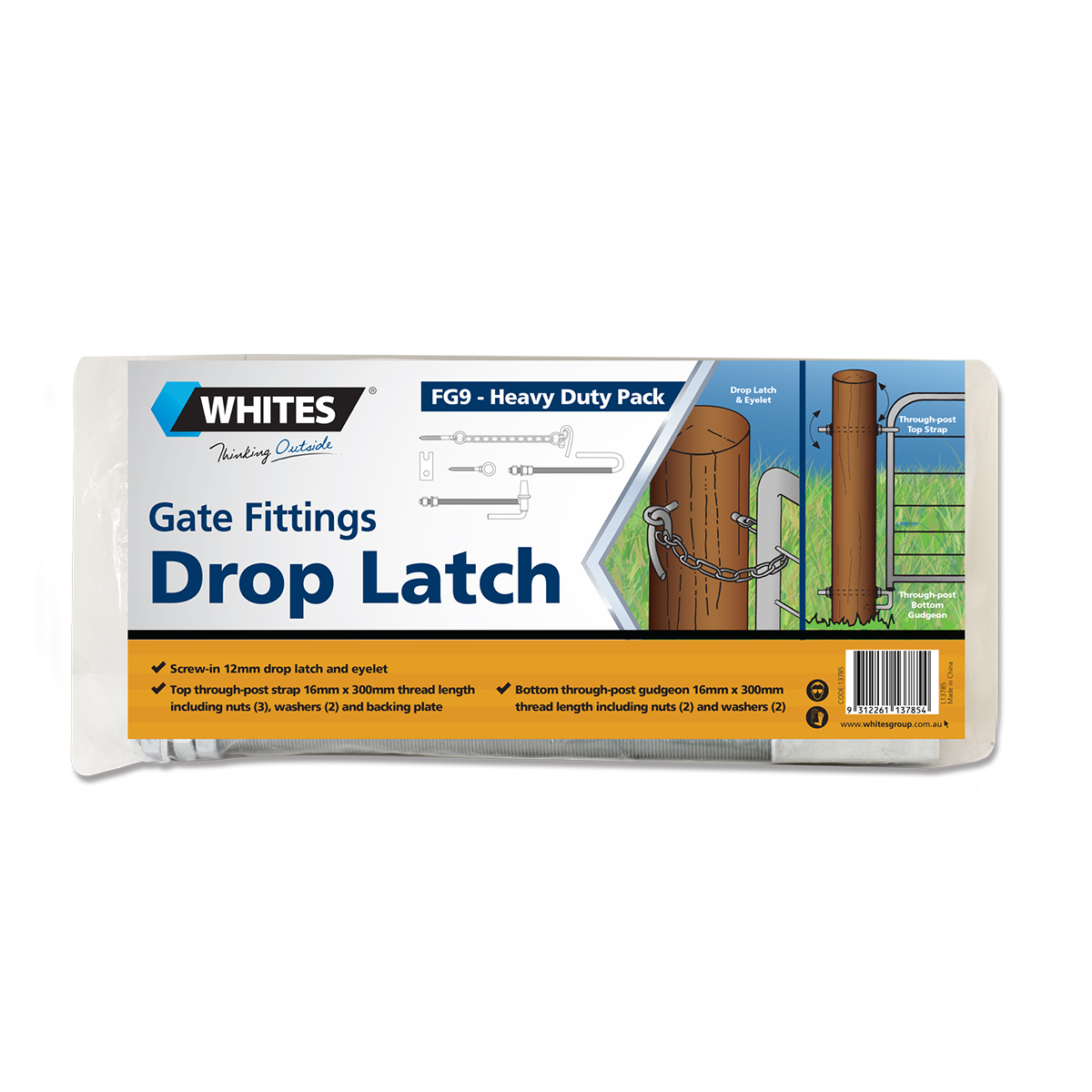

FG9 DROP latch - Heavy duty pack

Whites FG9 Drop Latch is a convenient way for locking gates. Featuring a screw-in 12mm drop latch and eyelet with chain, the pack includes:

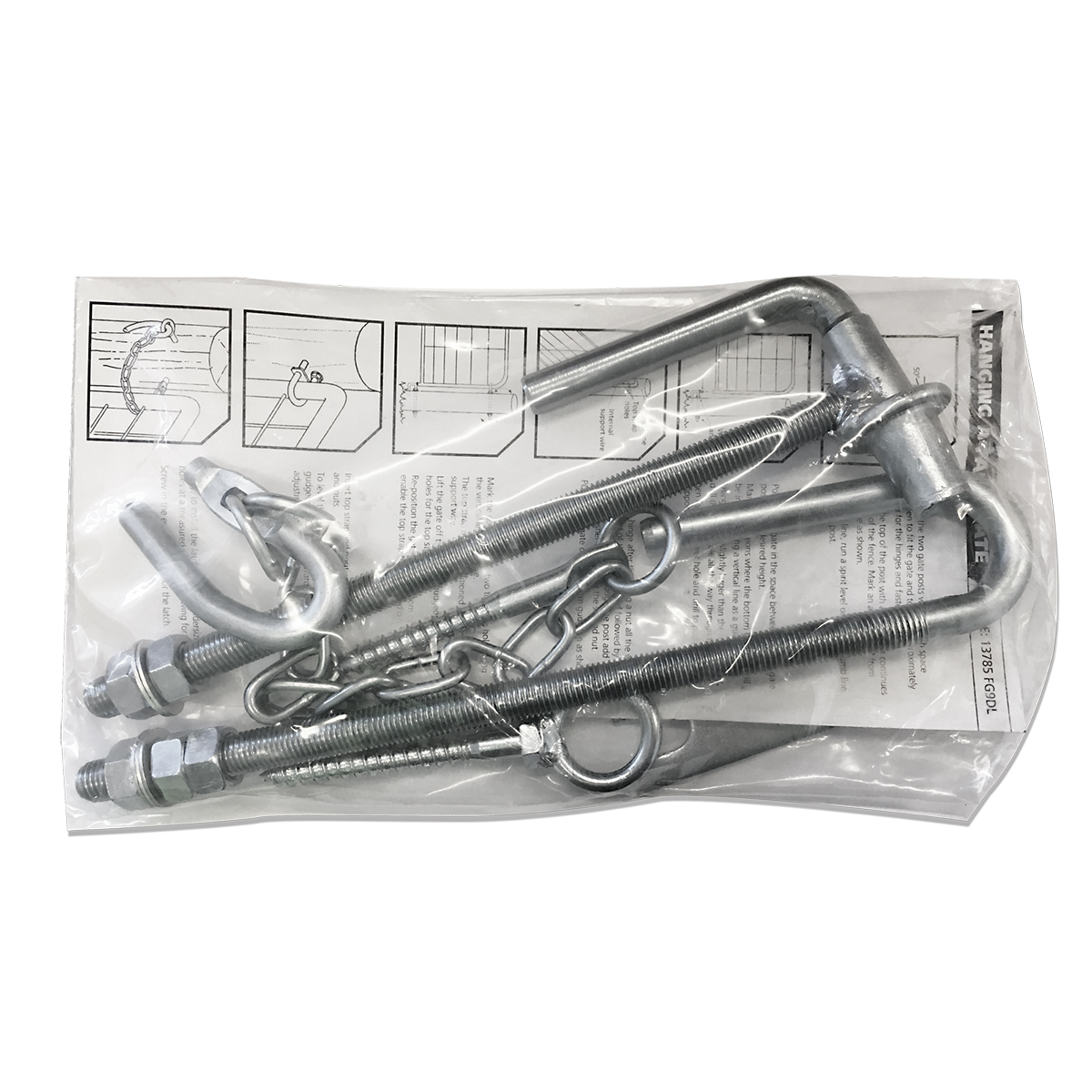

  • top through-post strap 16mm x 300mm thread length, 3 x nuts, 2 x washers and backing plate
  • bottom through-post gudgeon 16mm x 300mm thread length, 2 x nuts and 2 x washers

Also available in Ring Latch style.

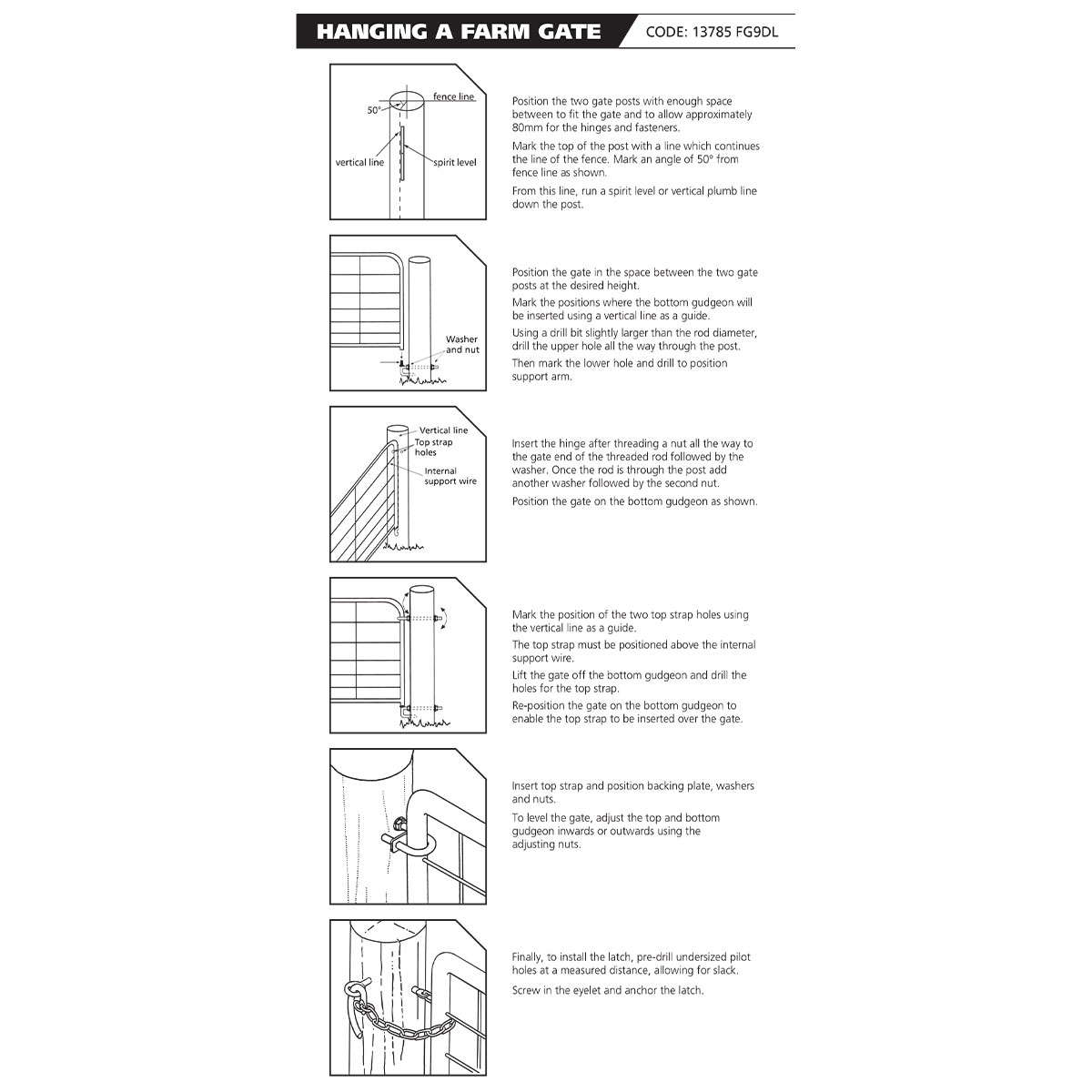

For full installation instruction, click on the image in the photo gallery.

Code Product Description MOQ Barcode
13785 FG9 Drop Latch pack Bunnings trial only 9312261137854
