FG9 Ring Latch

CATEGORY: Gates & Fittings Array
• Gate pack for locking gates
• 12mm ring latch & catch, with chain
• Comes with top strap & bottom gudgeon
• Available at selected Bunnings South Australia & Victoria only. Please check with your local SA or VIC store.

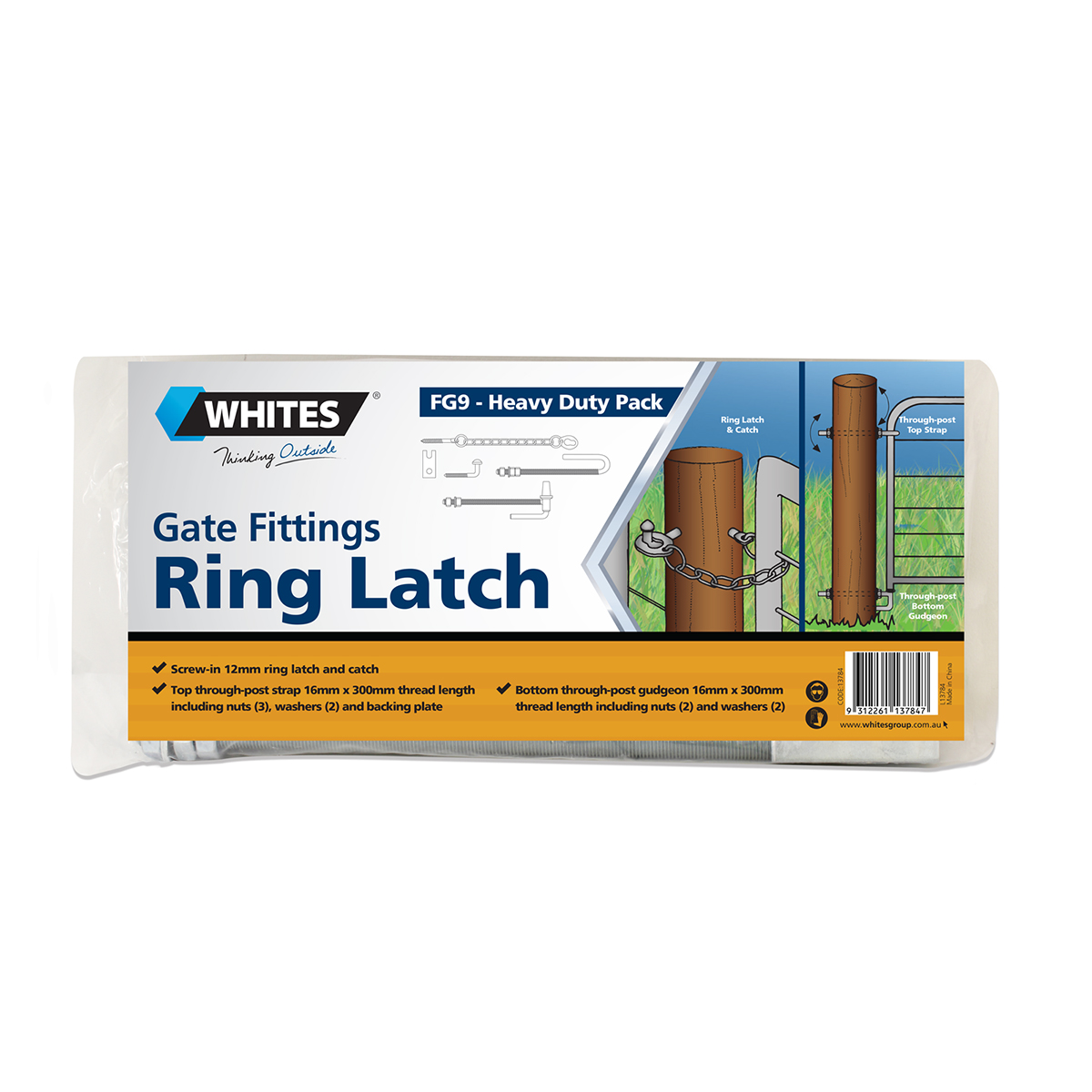

FG9 ring latch - Heavy duty pack

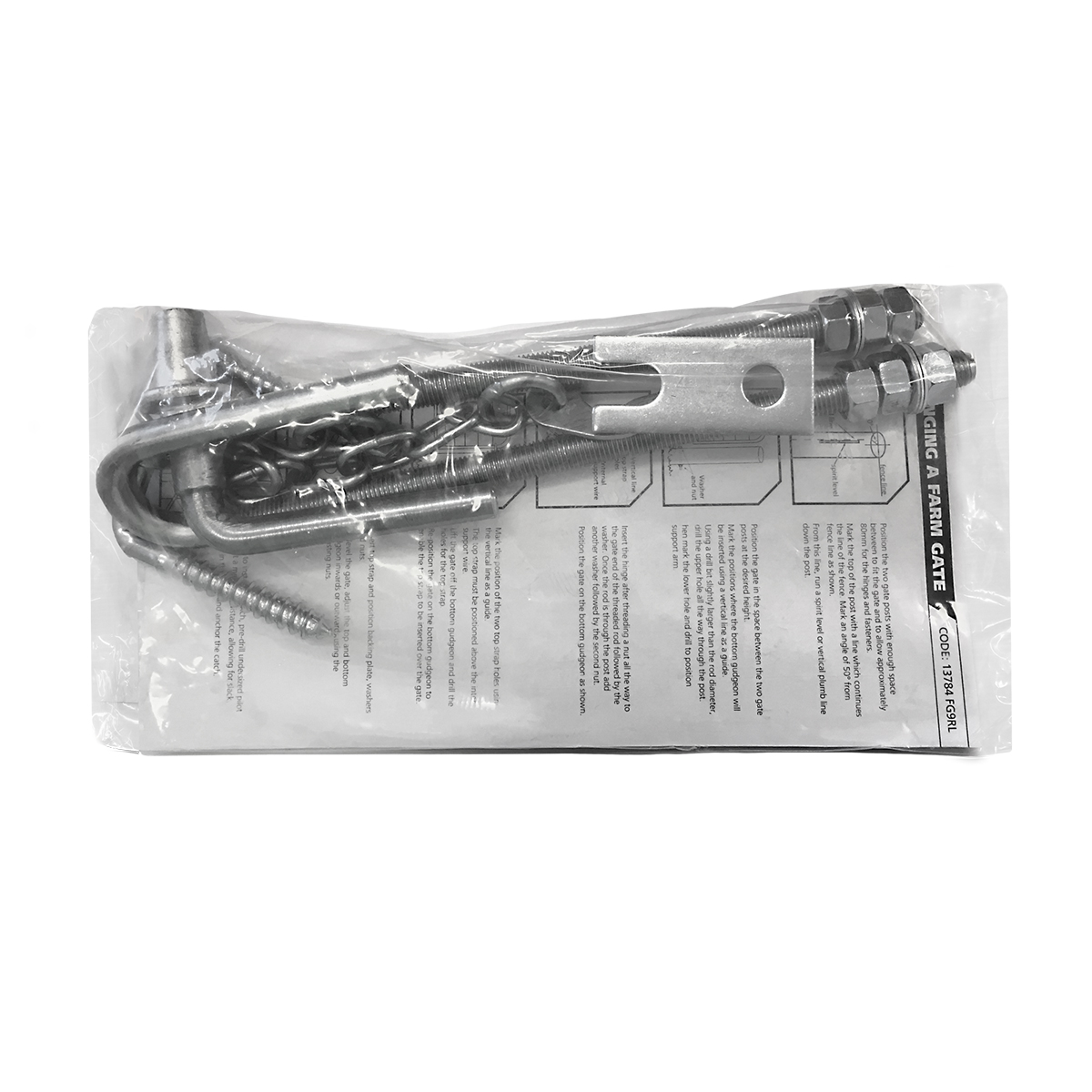

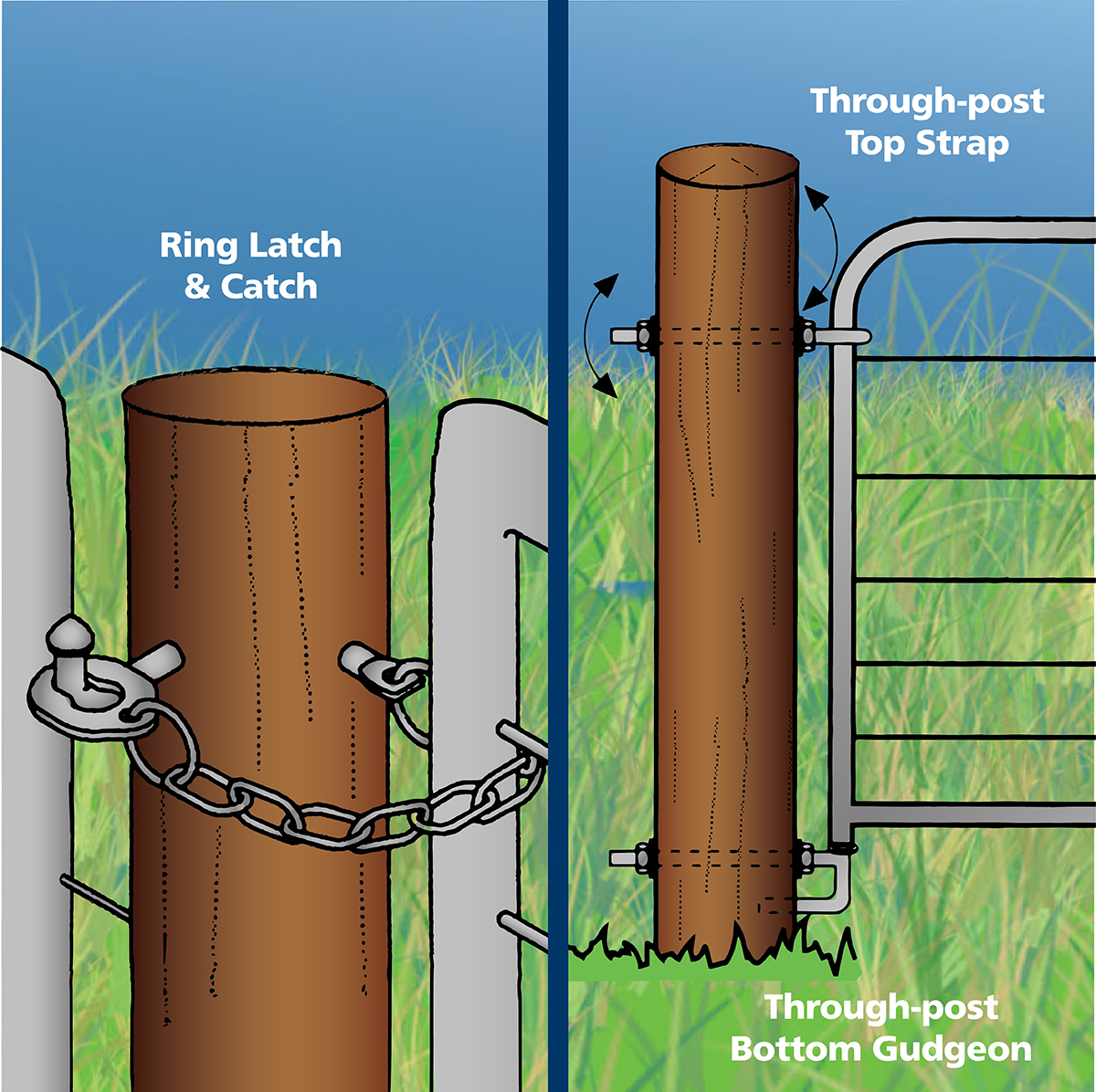

Whites FG9 Ring Latch is a convenient way for locking gates. Featuring a screw-in 12mm ring latch and catch with chain, the pack includes:

  • top through-post strap 16mm x 300mm thread length, 3 x nuts, 2 x washers and backing plate
  • bottom through-post gudgeon 16mm x 300mm thread length, 2 x nuts and 2 x washers

Also available in Drop Latch style.

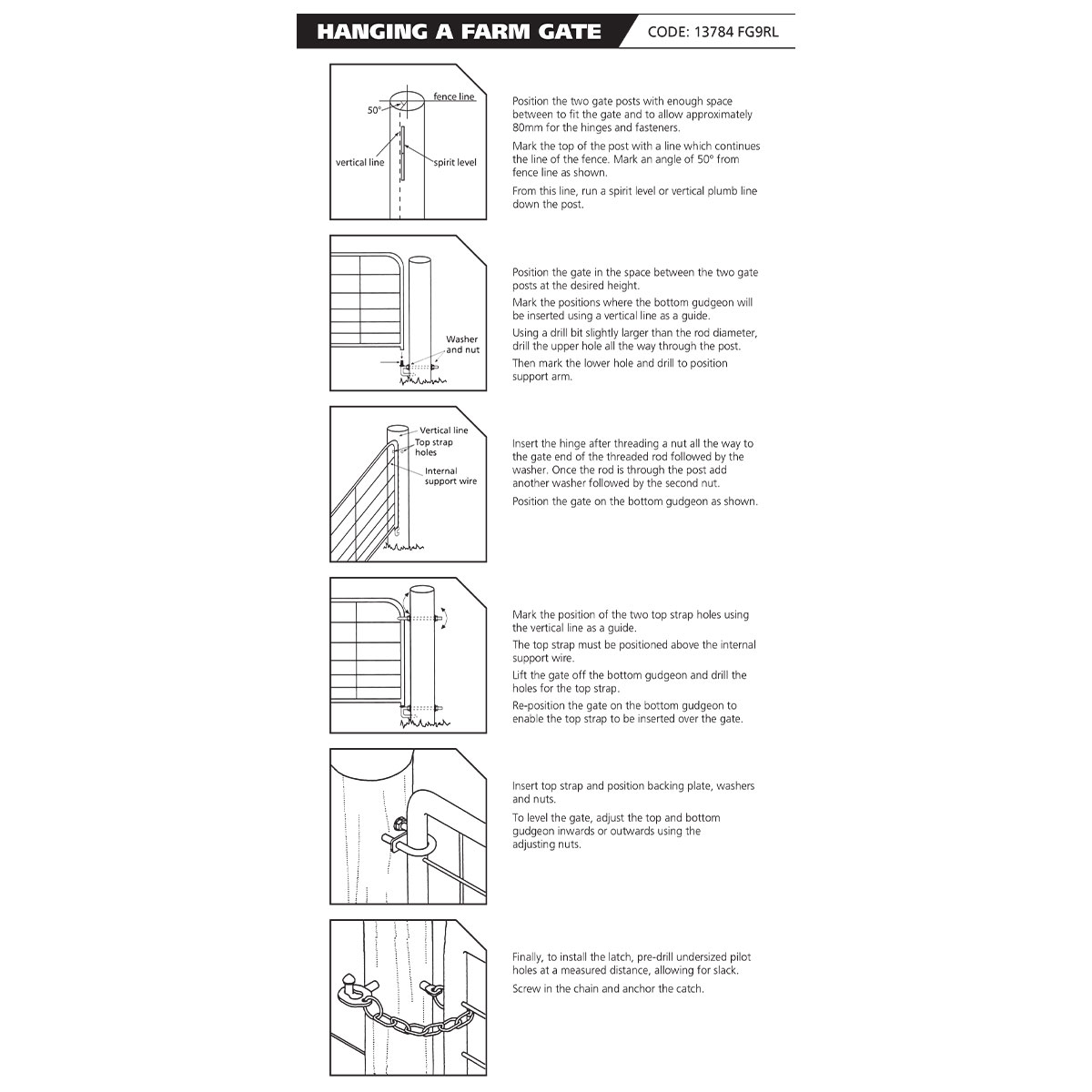

For full installation instruction, click on the image in the photo gallery.

Code Product Description MOQ Barcode
13784 FG9 Ring Latch pack* Bunnings trial only 9312261137847

* Available in South Australia & Victoria only

Not all products available in all areas of Australia.
