Roofing Mesh: Roof Mesh
Roofing Mesh
PDF
20199 - roof mesh 180x300x150 2mm 50m9

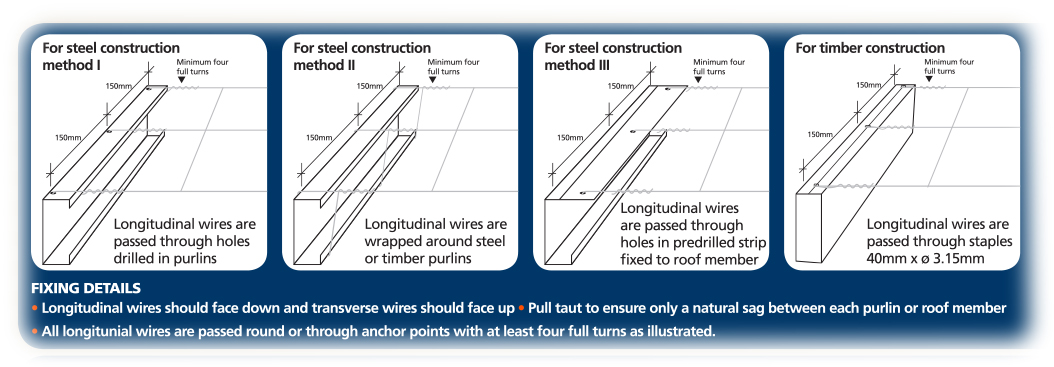

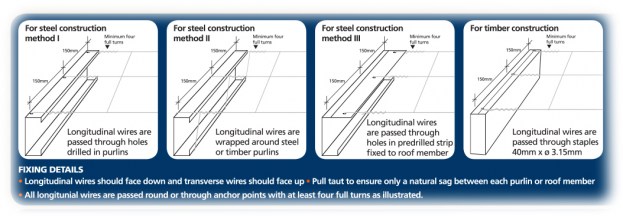

roof mesh instructions

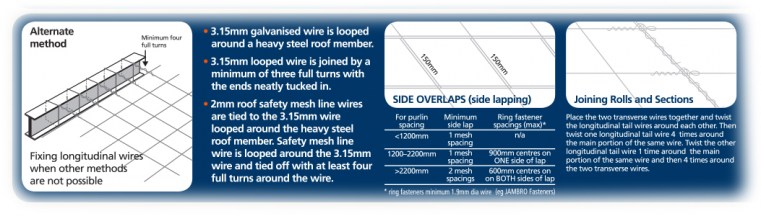

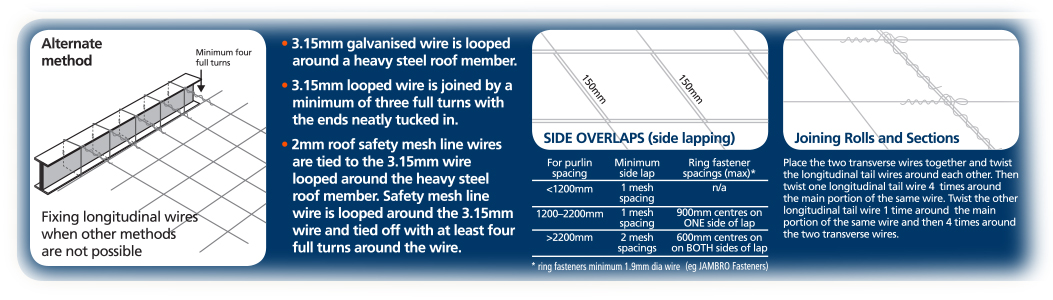

roof mesh alternative method

Roof Mesh

CATEGORY: Roofing Mesh Array
• Rigorously tested to Australian Standards
• Reliable, safe protection from serious injury
• Quality at the right price

safety mesh for roofing

Whites Roof Mesh is designed to retain insulation while providing a quality fall barrier for employees during installation and maintenance. With a wire diameter of 2mm and aperture of 300 x 150mm, it's ideal for large and small roofing applications, including warehouses, factories, shopping centres, schools, offices and sheds.

Whites Roof Mesh is continually tested to ensure that every roll is made to the highest standards to be always reliable and safe. It complies with and exceeds the Australian Standard AS/NZS 4389: 2015. It also exceeds the minimum tensile requirements of 500MPa.



Code Product Description

Height x Length

MOQ Barcode

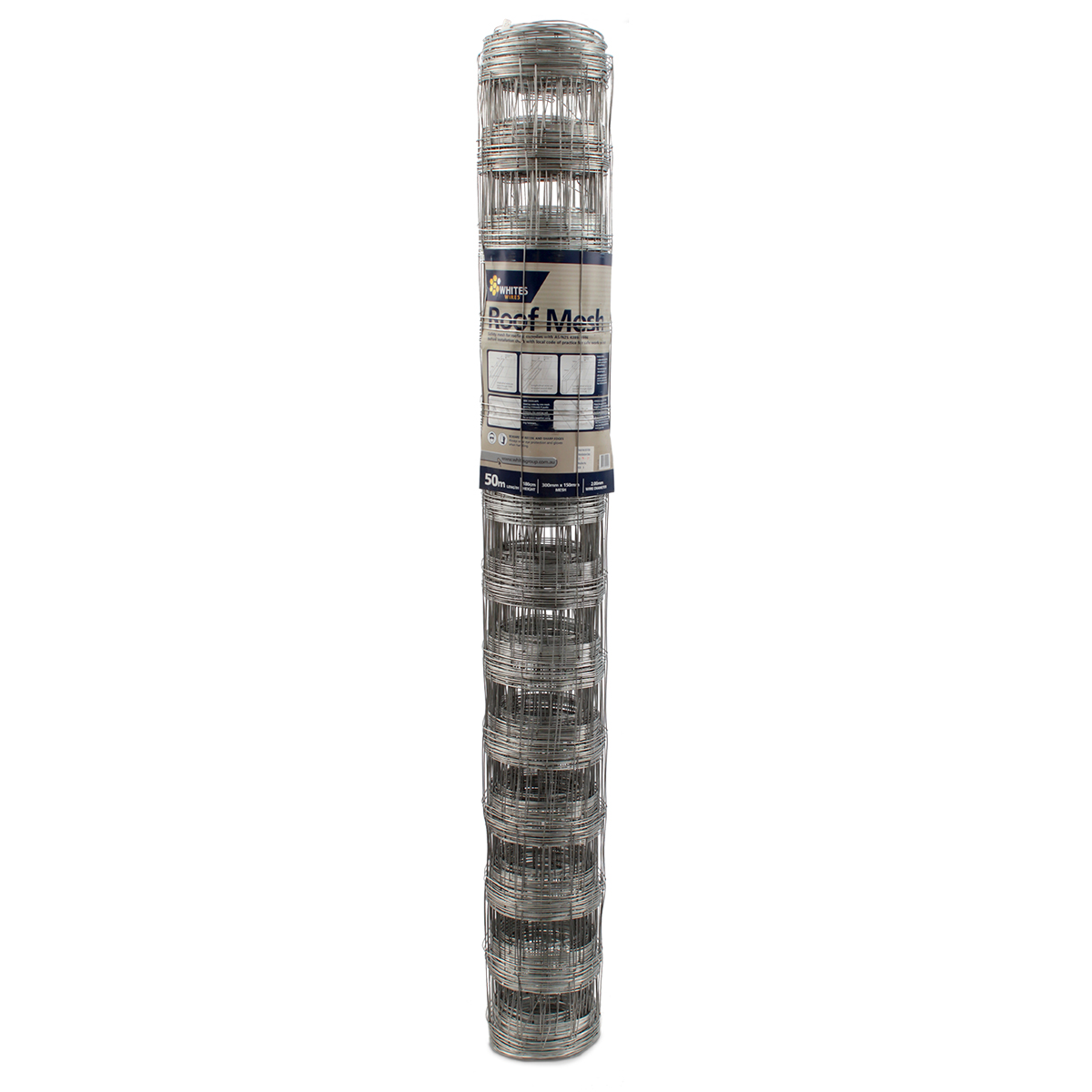

20199 Roof Mesh (Galvanised) - 23.8kg 1.8m x 50m 1 9312261201999

To view the step by step instructions, click on the 'Installation guide' images in the photo gallery at the top of this page.



Handy Hints:

    • Before installation, check with local code of practice for safe work on roofs.
    • Beware of recoil and sharp edges.
    • Always wear eye protection and gloves when handling.

Not all products available in all areas of Australia.
